Achterl EC Hybride m/led mistl 24V re VPE: 1
223.51 EUR
inc. VAT 21%
Can be ordered
No description found
Mounting type
Suspension
Mounting type
screwed
Type of fastening
Horizontal mount
Type of lighting device
with hybrid technology
Lamp type
P21W
Lamp type
PY21W
Lamp type
LED
Voltage [V]
24
Installation side
to the right

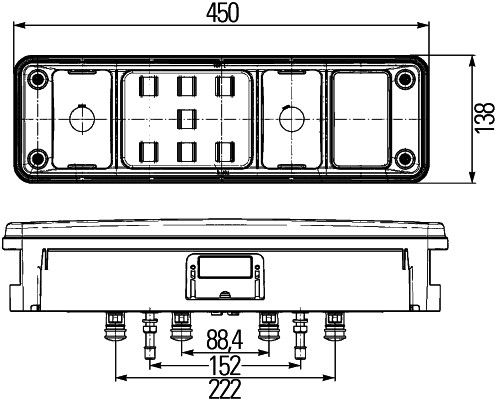

Height [mm]
94
Width [mm]
138
Length [mm]
450
Lighting device function
without position light (LED)
Lighting device function
with reverse light signal
Lighting device function
with rear fog lights (LED)
Lighting device function
with brake lights (LED)
Lighting device function
with rear position light (LED)
Lighting device function
with reflector
Lighting device function
with flashing light
Number of headlight functions
6
Plug contact type-ID
EasyConn 4 x 2
Plug contact type-ID
EasyConn 1 x 7
Type of connector
Connector plug
Protection type (IP code)
IP5K4K
Protection type (IP code)
IP6K9K
Type of operating permit
Tested ECE
Type of operating permit
ADR/GGVS approved
Type of operating permit
not SAE approved
Housing type
Plastic housing
Shell color
black
Headlamp glass color
transparent
Tightening torque [Nm]
1:5
Tightening torque [Nm]
6
Additional article/Additional info 2
Trailers
Additional article/Additional info 2
with connector
Additional article/Additional info 2
with incandescent bulbs
Additional article/Additional info 2
Electromagnetic compatibility
Additional article/Additional info 2
with turn signal lamp malfunction control
cross-reference numbers
2VP 340 961-031
Quantity
1
Substance of Very High Concern
7439-92-1; lead
Substance of Very High Concern
1330-43-4; Disodium tetraborate, anhydrous
