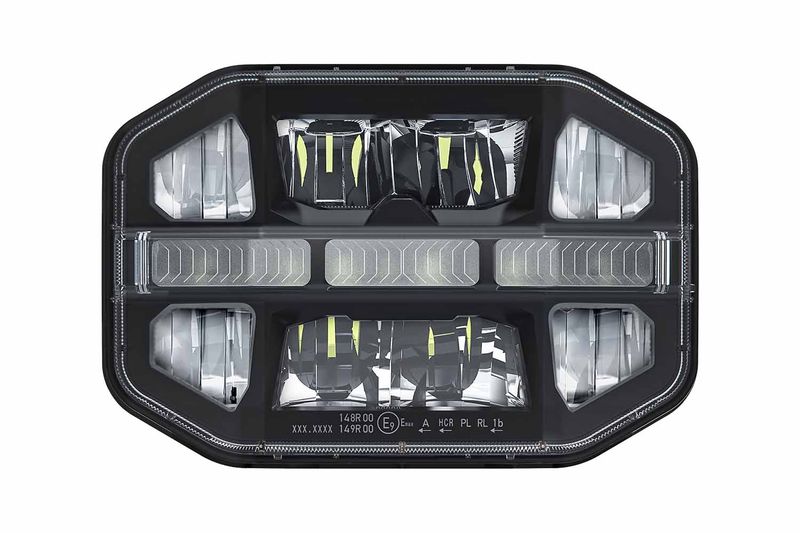

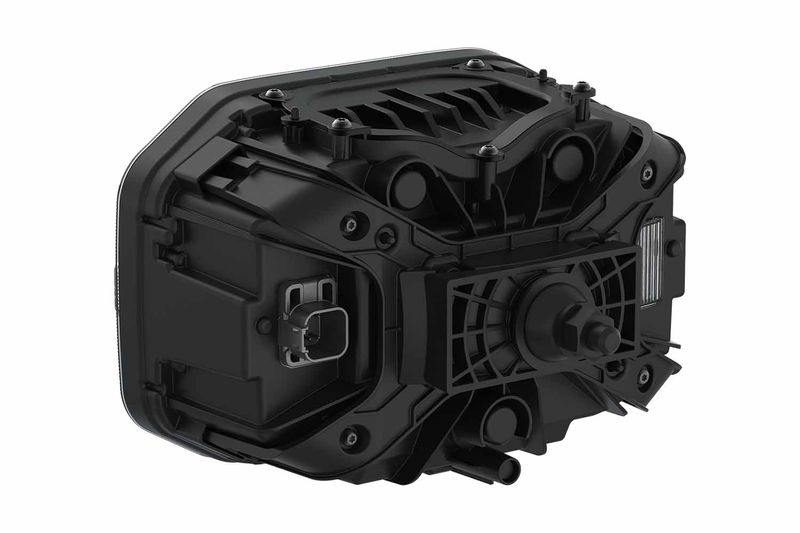

KOPLAMP 1EF VPE: 1
379.06 EUR
inc. VAT 21%
Can be ordered
No description found
Installation side
to the right
Mounting type
screwed
Type of fastening
horizontal bracket
Lighting device function
with high beam lights (LED)
Lighting device function
with low beam lights (LED)
Lighting device function
with parking light (LED)
Lighting device function
with flashing light signal (LED)
Additional article/Additional info 2
with turn signal lamp malfunction control
Left-/Right-hand drive
For right-hand traffic
Lamp type
LED
Type of lighting device
asymmetric
Voltage [V]
12
Voltage [V]
24
Type of operating permit
Tested ECE
complies with ECE standards
R149
complies with ECE standards
R148
complies with ECE standards
R10
Housing material
PBT (Polybutylene Terephthalate)
Protection type (IP code)
IP6K9K
Temperature range from [°C]
+40
Temperature range up to [°C]
50]
Type of connector
GERMAN connector plug
Number of pin contacts
6
Height [mm]
165
Width [mm]
245
Depth [mm]
192
Reverse polarity protection
yes
cross-reference numbers
1EF 328 550-131
