STARTERS 0 001 138 009
196.77 EUR
inc. VAT 21%
Out of Stock
No description found
Voltage [V]
12
Starter power [kW]
1,7
Number of mounting holes
3
Number of threaded holes
0
Number of teeth
1+1
Output terminal
50
Output terminal
+30

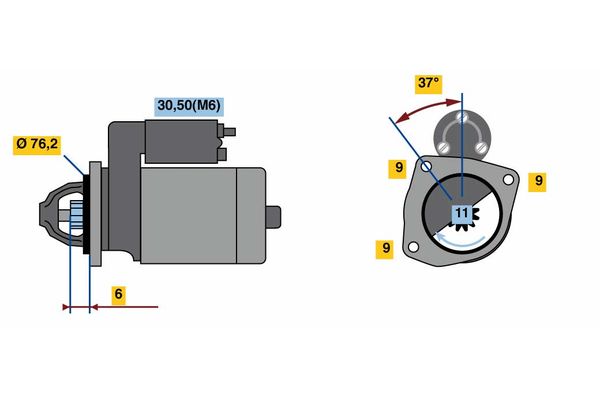

Flange diameter [mm]
76,2
Direction of rotation
Clockwise
Gear-Base Position [mm]
3+1
Starter execution
specially stored
Bore diameter [mm]
9
Hole diameter 2 [mm]
9
Bore-Ø 3 [mm]
9
Length [mm]
226
Condition/Grades
left
Mounting Angle [Degrees]
37
Keyhole angle [degrees]
53
Mounting hole angle [degrees]
37
