1988 STARTERIS B-05 25-2107 0 986 019 880
Compatible with CHRYSLER VOYAGER II (ES) , CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) , CHRYSLER GRAND VOYAGER III VAN (GS) Show more info178.47 EUR
inc. VAT 21%
Out of Stock
No description found
Voltage [V]
12
Starter power [kW]
1,4
Number of mounting holes
0
Number of threaded holes
2
Number of teeth
9
Output terminal
50]
Output terminal
[30

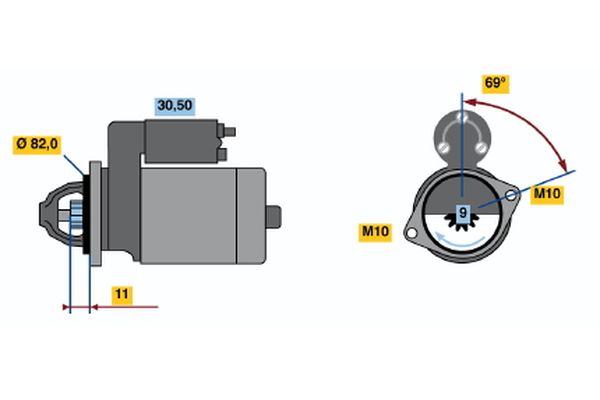

Flange diameter [mm]
82,5
Direction of rotation
Clockwise
Gear-Base Position [mm]
8,3
Starter execution
specially stored
Thread size
M10
Thread size 1
M10x1.5
Length [mm]
266
Condition/Grades
right
Mounting Angle [Degrees]
69
Keyhole angle [degrees]
+90
Mounting hole angle [degrees]
69
-
CHRYSLER
-
VOYAGER II (ES)
- 3.3 i (110kW/150PS)
- 3.3 (112kW/152PS)
-
VOYAGER / GRAND VOYAGER III (GS_, NS_)
- 3.3 i (116kW/158PS)
- 3.8 i AWD (122kW/166PS)
- 3.8 i AWD (131kW/178PS)
-
GRAND VOYAGER III VAN (GS)
- 3.8 (131kW/178PS)
- 3.3 (116kW/158PS)
-
VOYAGER III VAN (GS_)
- 3.3 (GSHY52) (116kW/158PS)
- 3.8 AWD (GSHC52) (122kW/166PS)
- 3.8 AWD (GSHC52) (131kW/178PS)
-
VOYAGER II (ES)
