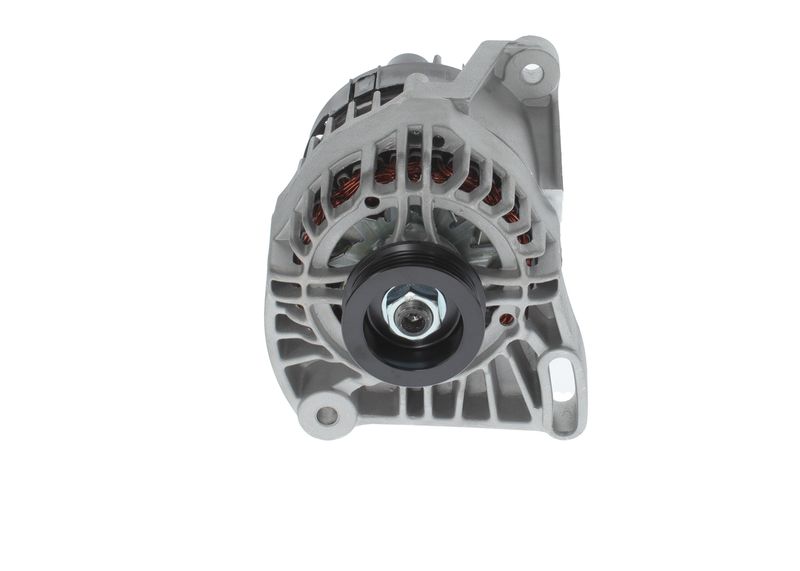

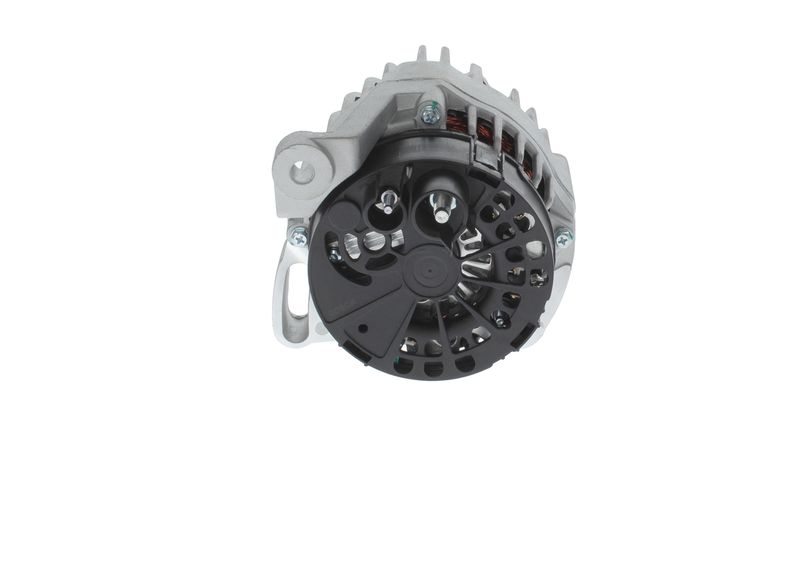

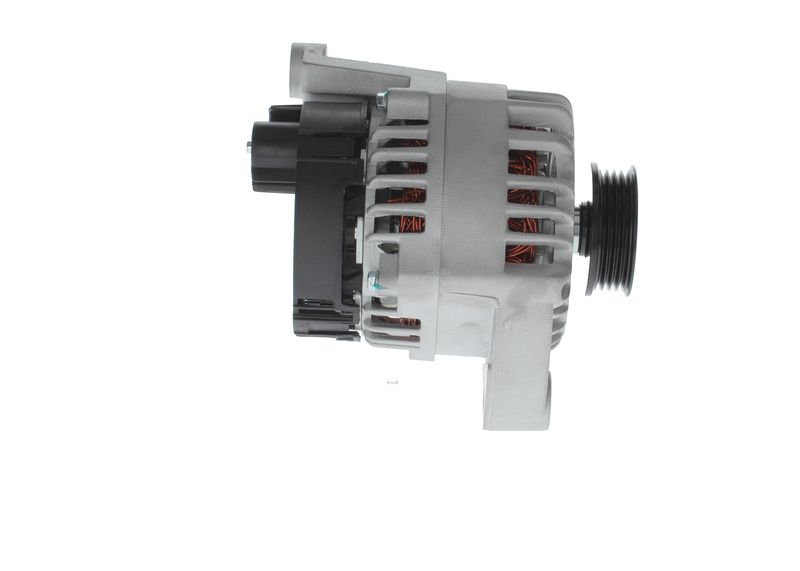

ĢENERATORS 1 986 A00 740
Compatible with FIAT PUNTO (176_) , FIAT PUNTO Kabriolets (176_) , LANCIA Y (840_) Show more info119.63 EUR
inc. VAT 21%
Out of Stock
No description found
Voltage [V]
14
Generator charging current [A]
65
Type of fastening
Double control arm
Generator model
except the vacuum pump
Distance from pulley to alternator [mm]
54
Direction of rotation
Clockwise
Drive pulley
with a multi-rib belt drive pulley
Number of grooves
4
Drive pulley-Ø [mm]
+60
Output terminal
B+(M8), D+(M5)
Length [mm]
186
recommended repair extension
V-belt/Ribbed V-belt
-
FIAT
-
PUNTO (176_)
- 55 1.1 (40kW/54PS)
- 60 1.2 (43kW/58PS)
- 75 1.2 (54kW/73PS)
- 60 1.2 (176AP, 176AR, 176AQ, 176BB) (44kW/60PS)
- 1.2 16V (63kW/86PS)
-
PUNTO Kabriolets (176_)
- 60 1.2 (43kW/58PS)
- 60 1.2 (176AR_, 176BR_) (44kW/60PS)
-
PALIO (178_, 171_, 371_)
- 1.2 (54kW/73PS)
- 1.2 (44kW/60PS)
- 1.2 (50kW/68PS)
-
PALIO Weekend (178_, 173_, 373_, 374_, 171_)
- 1.2 (54kW/73PS)
- 1.2 (178DYA1A, 178DXS1A) (44kW/60PS)
- 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) (59kW/80PS)
-
PUNTO Van (176_)
- 1.1 (40kW/54PS)
-
STRADA Pick-up (178_, 278_)
- 1.2 (54kW/73PS)
-
PUNTO (188_)
- 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... (59kW/80PS)
-
SIENA (178_, 172_, 372_)
- 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) (54kW/73PS)
-
DOBLO Lielas ietilpības automobilis (119_, 223_)
- 1.2 (223AXA1A) (48kW/65PS)
-
DOBLO Furgons/minivens (223_)
- 1.2 (223ZXA1A) (48kW/65PS)
-
PUNTO (176_)
-
LANCIA
-
Y (840_)
- 1.2 (840AA, 840AF1A) (44kW/60PS)
- 1.1 (840AE) (40kW/54PS)
-
Y (840_)
