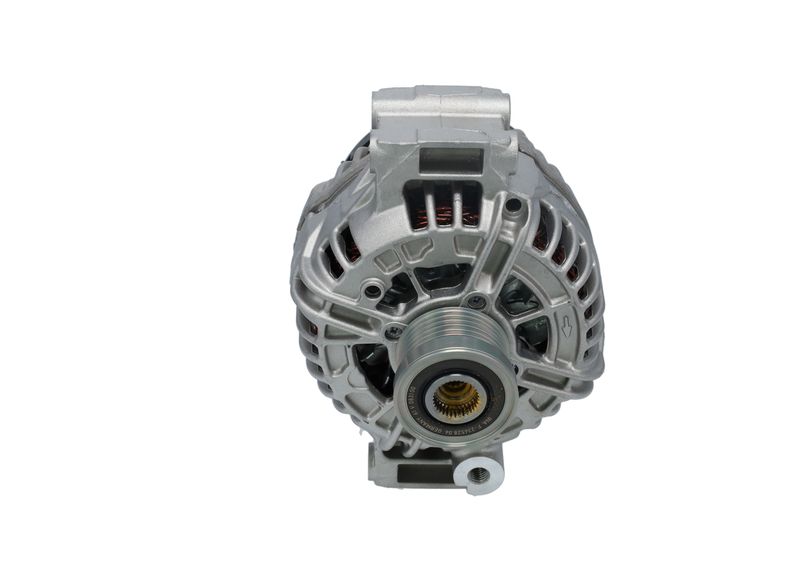

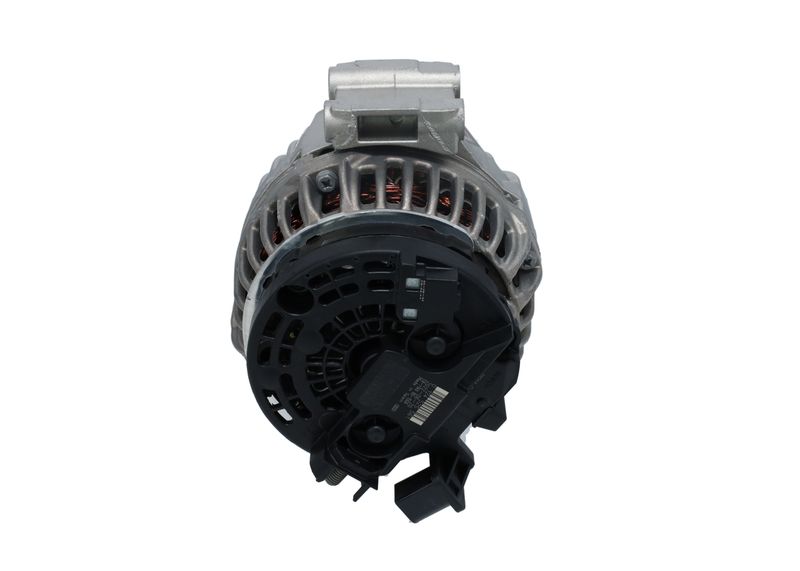

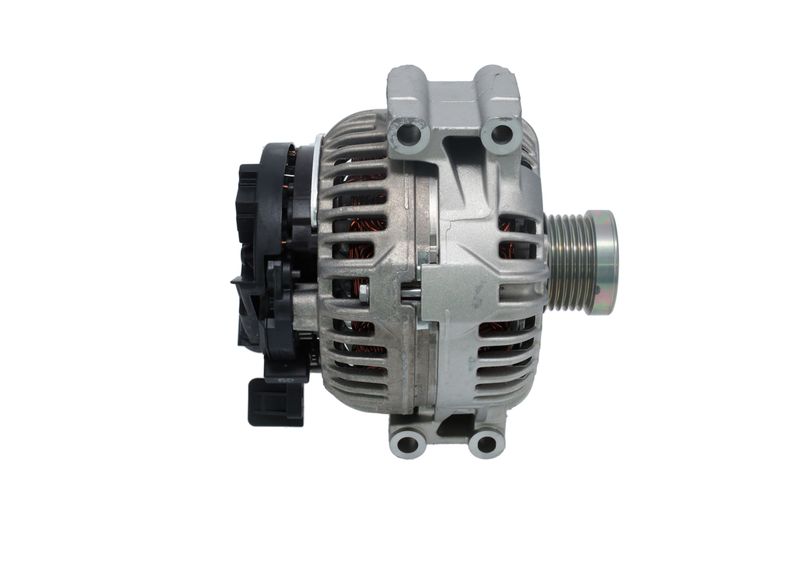

ĢENERATORS 1 986 A00 909
Compatible with BMW 3 Compact (E46) , BMW 3 (E46) , BMW 3 Coupe (E46) Show more info243.65 EUR
inc. VAT 21%
Out of Stock
No description found
Voltage [V]
14
Generator charging current [A]
+150
Type of fastening
Direct mounting
Generator model
except the vacuum pump
Distance from pulley to alternator [mm]
[30
Direction of rotation
Clockwise
Drive pulley
with an idler pulley
Number of grooves
6
Drive pulley-Ø [mm]
49
Output terminal
B+(M8)
Plug contact type-ID
86
Length [mm]
195
recommended repair extension
V-belt/Ribbed V-belt
-
BMW
-
3 Compact (E46)
- 316 ti (85kW/115PS)
- 318 ti (105kW/143PS)
- 316 ti (85kW/115PS)
-
3 (E46)
- 318 i (105kW/143PS)
- 316 i (85kW/115PS)
- 316 i (85kW/115PS)
-
3 Coupe (E46)
- 318 Ci (105kW/143PS)
- 316 Ci (85kW/115PS)
- 318 Ci (110kW/150PS)
-
3 Touring (E46)
- 318 i (105kW/143PS)
- 316 i (85kW/115PS)
-
3 Kabriolets (E46)
- 318 Ci (105kW/143PS)
- 318 Ci (110kW/150PS)
-
1 (E81)
- 116 i (85kW/115PS)
- 120 i (115kW/156PS)
- 118 i (95kW/129PS)
-
3 (E90)
- 320 i (110kW/150PS)
- 318 i (95kW/129PS)
- 320 si (127kW/173PS)
- 316 i (85kW/115PS)
-
Z4 Roadster (E85)
- 2.0 i (110kW/150PS)
-
3 Touring (E91)
- 320 i (110kW/150PS)
- 318 i (95kW/129PS)
-
X3 (E83)
- 2.0 i (110kW/150PS)
- xDrive 20 i (110kW/150PS)
-
X1 (E84)
- sDrive 18 i (110kW/150PS)
-
1 Kabriolets (E88)
- 120 i (115kW/156PS)
-
1 (E87)
- 116 i (85kW/115PS)
- 118 i (95kW/129PS)
- 120 i (110kW/150PS)
- 120 i (115kW/156PS)
-
5 (E60)
- 520 i (115kW/156PS)
-
3 Kabriolets (E93)
- 320 i (115kW/156PS)
-
3 Compact (E46)
BMW
12 31 4 456 281
12 31 7 505 896
12 31 7 512 151
12 31 7 516 101
12 31 7 516 723
12 31 7 521 384
12 31 7 521 385
12 31 7 521 488
12 31 7 521 489
12 31 7 521 490
12 31 7 521 491
12 31 7 522 962
12 31 7 532 964
12 31 7 532 965
12 31 7 532 966
12 31 7 532 968
12 31 7 532 969
12 31 7 533 270
12 31 7 533 272
7 532 696
