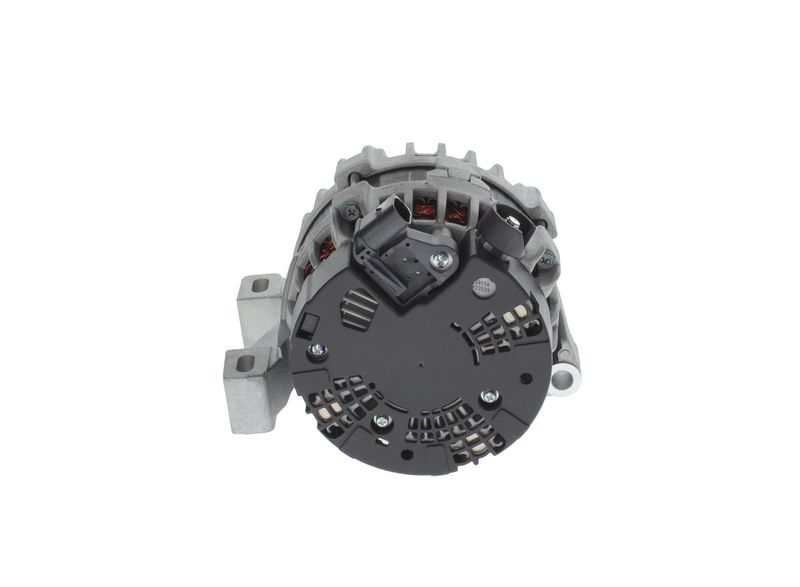

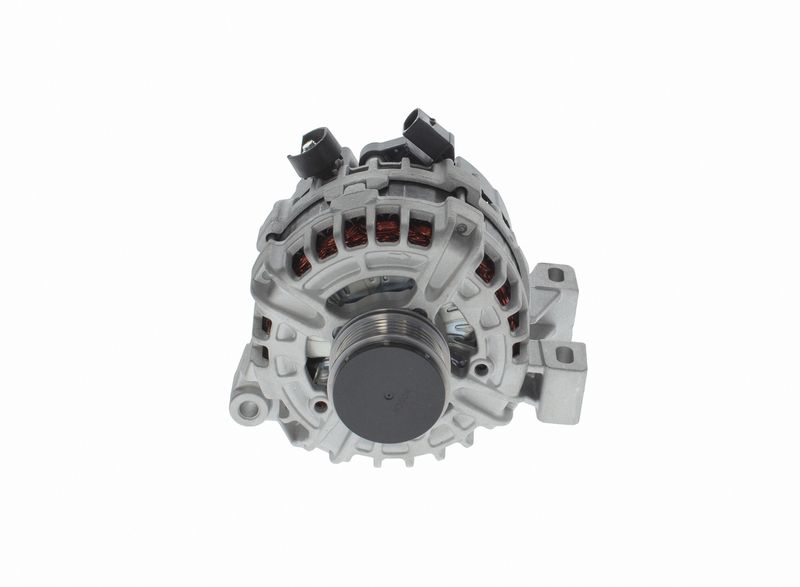

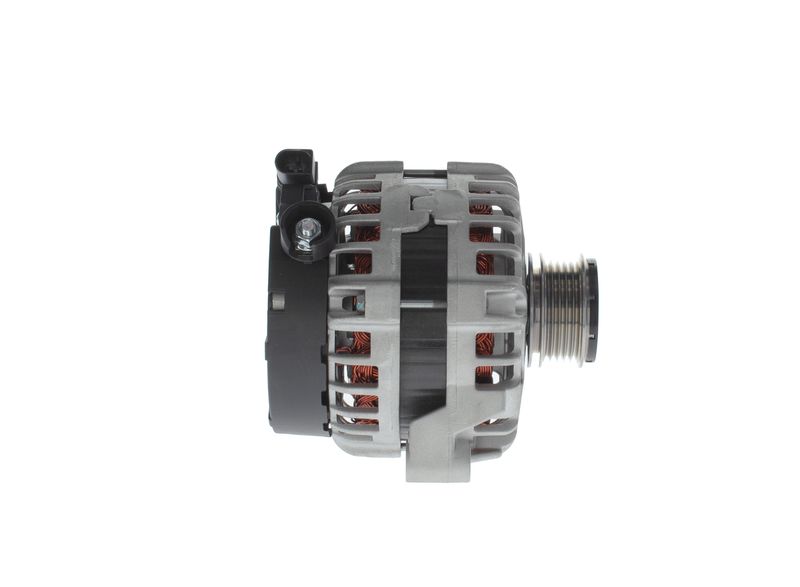

ĢENERATORS 1 986 A01 040
Compatible with VOLVO C30 (533) , VOLVO C70 II Kabriolets (542) , VOLVO S40 II (544) Show more info333.96 EUR
inc. VAT 21%
Out of Stock
No description found
Voltage [V]
14
Generator charging current [A]
+150
Type of fastening
Mounting on legs
Generator model
except the vacuum pump
Distance from pulley to alternator [mm]
73,1
Direction of rotation
Clockwise
Drive pulley
with an idler pulley
Number of grooves
5
Drive pulley-Ø [mm]
55,7
Output terminal
B+(M8)
Plug contact type-ID
341
Length [mm]
170
recommended repair extension
V-belt/Ribbed V-belt
-
VOLVO
-
C30 (533)
- D3 (110kW/150PS)
- D4 (130kW/177PS)
- T5 (169kW/230PS)
-
C70 II Kabriolets (542)
- D4 (130kW/177PS)
-
S40 II (544)
- 2.4 (103kW/140PS)
- 2.4 (125kW/170PS)
- T5 (162kW/220PS)
- T5 AWD (162kW/220PS)
- T5 (169kW/230PS)
- T5 AWD (169kW/230PS)
-
V50 (545)
- 2.4 (125kW/170PS)
- T5 (162kW/220PS)
- T5 AWD (162kW/220PS)
- T5 (169kW/230PS)
- T5 AWD (169kW/230PS)
-
V40 Cross Country (526)
- T4 AWD (132kW/180PS)
- T5 AWD (157kW/214PS)
- T5 AWD (187kW/254PS)
- T4 (132kW/180PS)
- D3 (110kW/150PS)
- D4 (130kW/177PS)
- T5 (187kW/254PS)
- T5 (157kW/214PS)
-
V40 Hečbeka virsbūve (525)
- T4 (132kW/180PS)
- D3 (110kW/150PS)
- D4 (130kW/177PS)
- T5 (187kW/254PS)
- T5 (157kW/214PS)
-
S60 II (134)
- 2.0 T (132kW/180PS)
-
V60 I (155)
- 2.0 T (132kW/180PS)
-
V60 I Cross Country (157)
- T5 AWD (187kW/254PS)
-
C30 (533)
