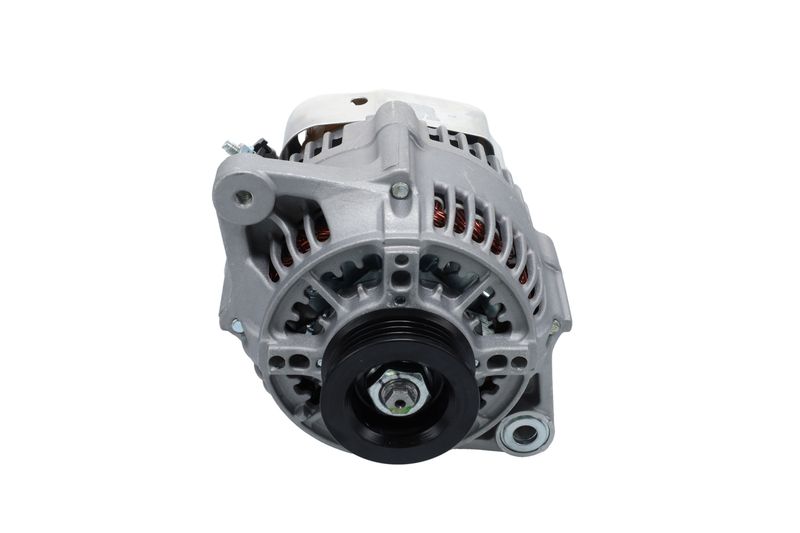

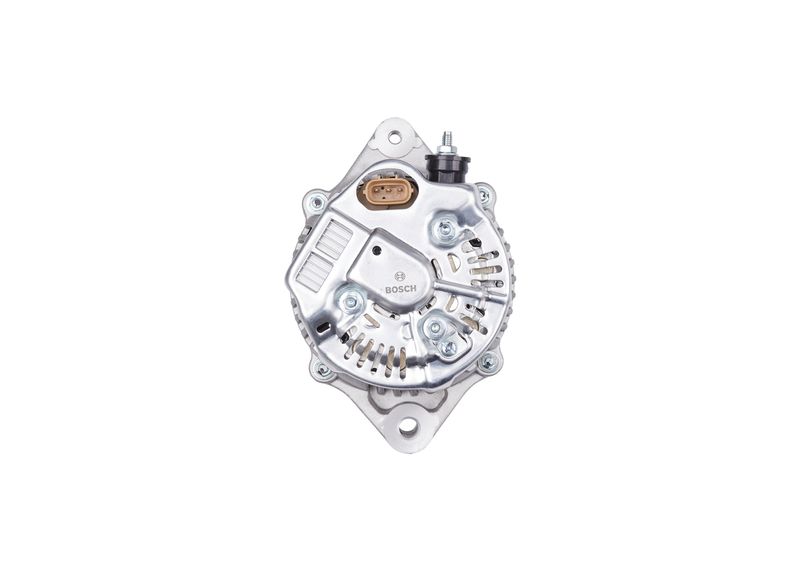

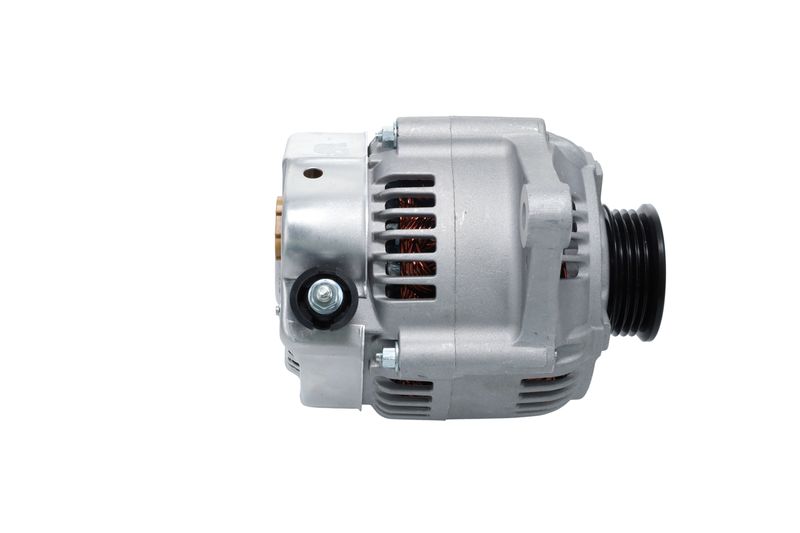

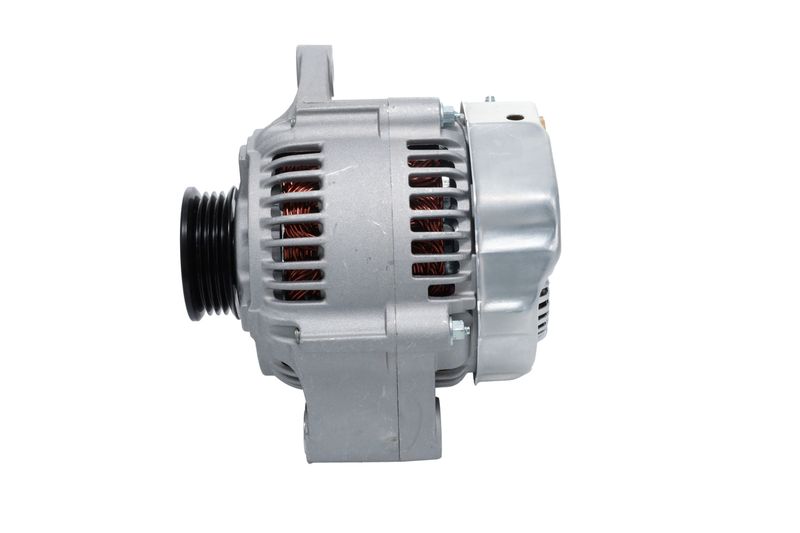

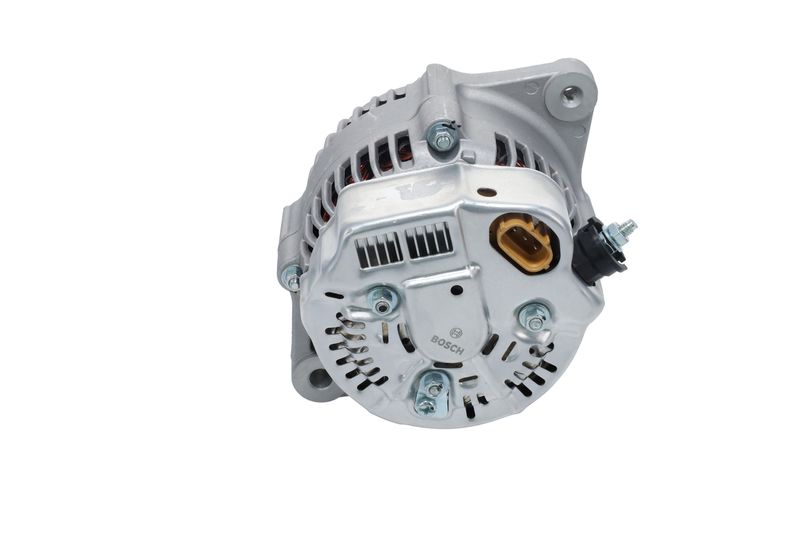

ĢENERATORS 1 986 A01 263
Compatible with SUZUKI IGNIS I (FH) , SUZUKI LIANA Hečbeka virsbūve , SUZUKI JIMNY Slēgta tipa visurgājējs (SN) Show more info173.01 EUR
inc. VAT 21%
Out of Stock
No description found
Voltage [V]
14
Generator charging current [A]
+75
Type of fastening
Double control arm
Generator model
except the vacuum pump
Distance from pulley to alternator [mm]
90,5
Direction of rotation
Clockwise
Drive pulley
with a multi-rib belt drive pulley
Number of grooves
4
Drive pulley-Ø [mm]
55
Output terminal
B+(M6)
Plug contact type-ID
95
Length [mm]
162
recommended repair extension
V-belt/Ribbed V-belt
-
SUZUKI
-
IGNIS I (FH)
- 1.3 (HV51, HX51, RG413) (61kW/83PS)
- 1.3 4WD (RG413) (61kW/83PS)
- 1.5 Sport (RG415) (80kW/109PS)
-
LIANA Hečbeka virsbūve
- 1.3 (66kW/90PS)
- 1.6 (RH416) (76kW/103PS)
- 1.6 4WD (76kW/103PS)
- 1.6 i (RH416) (78kW/106PS)
- 1.6 4WD (78kW/106PS)
- 1.6 4WD (79kW/107PS)
- 1.6 (79kW/107PS)
-
JIMNY Slēgta tipa visurgājējs (SN)
- 1.3 16V (SN413) (60kW/82PS)
- 1.3 16V 4WD (SN413, JB43) (60kW/82PS)
- 1.3 16V 4x4 (SN413, JB43) (63kW/86PS)
- 1.3 (SN413) (63kW/86PS)
- 1.3 4WD (SN413) (62kW/85PS)
-
LIANA (ER, RH_)
- 1.3 (RH 413) (66kW/90PS)
- 1.6 (RH416) (76kW/103PS)
- 1.6 4WD (RH416) (76kW/103PS)
- 1.6 i (RH416) (78kW/106PS)
- 1.6 4WD (RH416) (78kW/106PS)
- 1.6 (RH416) (79kW/107PS)
- 1.6 4WD (RH416) (79kW/107PS)
-
SWIFT III (MZ, EZ)
- 1.5 (RS415, ZC21S) (75kW/102PS)
- 1.3 (RS413, ZC11S) (68kW/92PS)
- 1.3 4x4 (RS413, ZD11S) (66kW/90PS)
- 1.3 4x4 (RS 413, ZD11S) (68kW/92PS)
-
JIMNY Atvērta tipa visurgājējs (SN)
- 1.3 (SN413) (63kW/86PS)
-
IGNIS I (FH)
