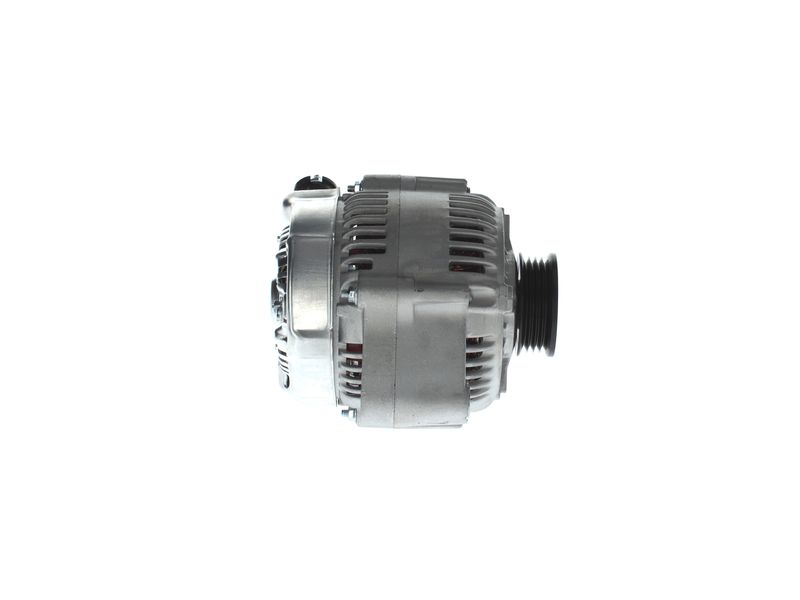

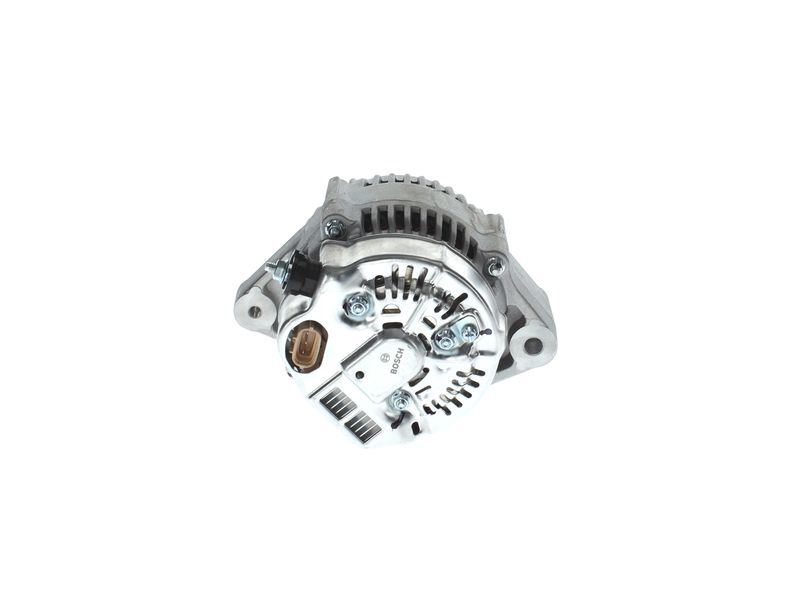

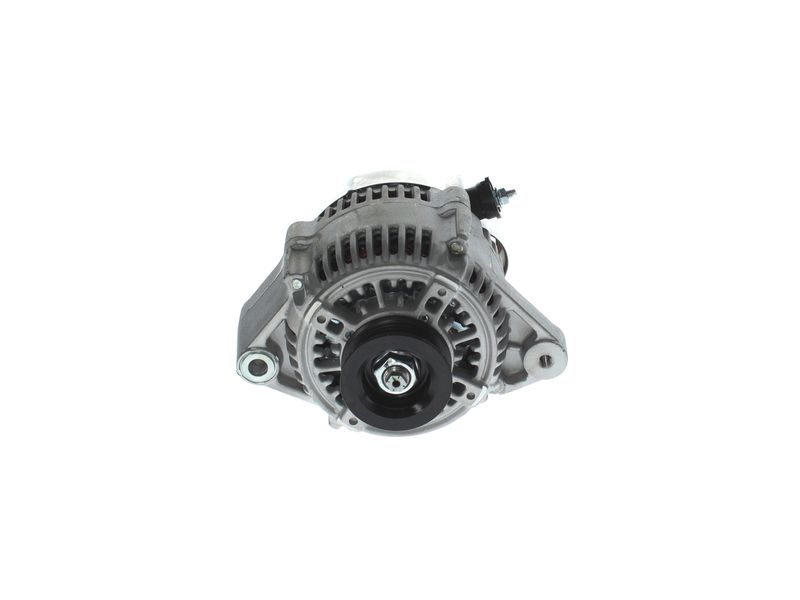

ĢENERATORS 1 986 A01 276
Compatible with TOYOTA COROLLA (_E10_) , TOYOTA COROLLA Compact (_E10_) , TOYOTA COROLLA Liftback (_E10_) Show more info172.77 EUR
inc. VAT 21%
Out of Stock
No description found
Voltage [V]
14
Generator charging current [A]
70
Type of fastening
Double control arm
Generator model
except the vacuum pump
Distance from pulley to alternator [mm]
90,5
Direction of rotation
Clockwise
Drive pulley
with a multi-rib belt drive pulley
Number of grooves
4
Drive pulley-Ø [mm]
55
Output terminal
B+(M6)
Plug contact type-ID
4+2
Length [mm]
162
recommended repair extension
V-belt/Ribbed V-belt
-
TOYOTA
-
COROLLA (_E10_)
- 1.3 XLI 16V (EE101) (65kW/88PS)
- 1.3 XLI (EE101_, EE101R) (55kW/75PS)
- 1.3 12V (EE100_, EE100R) (53kW/72PS)
-
COROLLA Compact (_E10_)
- 1.3 XLI 16V (EE101) (65kW/88PS)
- 1.3 XLI (EE101_, EE101R) (55kW/75PS)
- 1.3 12V (EE100_, EE100R) (53kW/72PS)
-
COROLLA Liftback (_E10_)
- 1.3 XLI (EE101_, EE101R) (65kW/88PS)
- 1.3 12V (EE100_, EE100R) (53kW/72PS)
-
COROLLA Universālis (_E10_)
- 1.3 XLI 16V (EE101_, EE101R) (65kW/88PS)
- 1.3 XLI (EE101_, EE101R) (55kW/75PS)
- 1.3 12V (EE100_, EE100R) (53kW/72PS)
-
COROLLA Universālis (_E11_)
- 1.4 (EE111_, EE111R) (63kW/86PS)
-
COROLLA (_E11_)
- 1.4 (EE111_, EE111R) (63kW/86PS)
- 1.3 (EE110) (55kW/75PS)
- 1.3 (EE111_) (63kW/86PS)
-
COROLLA Compact (_E11_)
- 1.4 (EE111_, EE111R) (63kW/86PS)
-
COROLLA Liftback (_E11_)
- 1.4 (EE111_, EE111R) (63kW/86PS)
-
COROLLA (_E10_)
