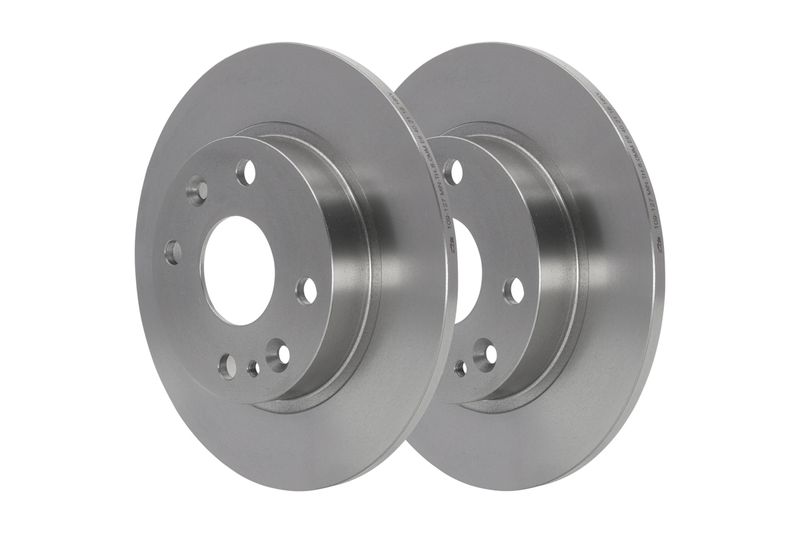

BREMŽU DISKS 24.0109-0127.1
Compatible with MAZDA 323 S IV (BG) , MAZDA 323 C IV (BG) , MAZDA 323 F IV (BG) Show more info31.20 EUR
inc. VAT 21%
Out of Stock
No description found

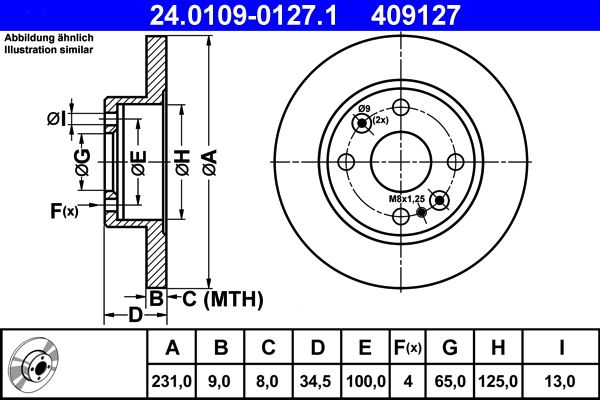

Outer diameter [mm]
231,0
Brake disc thickness [mm]
+90
Minimum thickness [mm]
+80
Brake disc type
completely
Number of splines
4
Bolt circle-Ø [mm]
100,0
Height [mm]
34,5
Centering diameter [mm]
65,0
Inner diameter [mm]
125,0
Bore diameter [mm]
+130
Test value
E1 90R-02C0165/0923
-
MAZDA
-
323 S IV (BG)
- 1.6 (BG6S) (62kW/84PS)
- 1.6 16V (BG6S) (65kW/88PS)
- 1.8 16V (BG8P) (76kW/103PS)
- 1.8 16V GT (BG8P) (94kW/128PS)
-
323 C IV (BG)
- 1.6 (BG6Z) (62kW/84PS)
- 1.6 16V (BG6Z) (65kW/88PS)
- 1.8 16V GT (BG8S) (94kW/128PS)
- 1.8 16V 4WD (BG8S) (76kW/103PS)
- 1.8 16V (BG8S) (103kW/140PS)
- 1.8 (BG8S) (96kW/130PS)
-
323 F IV (BG)
- 1.6 (BG6S, BG6P) (62kW/84PS)
- 1.6 16V (BG6S, BG6P) (65kW/88PS)
- 1.8 16V (BG8S, BG8P) (76kW/103PS)
- 1.8 16V GT (BG8S, BG8P) (94kW/128PS)
- 1.8 4WD (BG8R) (76kW/103PS)
- 1.8 16V (BG8S, BG8P) (103kW/140PS)
- 1.6 (BG6S, BG6P) (66kW/90PS)
-
MX-5 I (NA)
- 1.6 (NA6C) (85kW/115PS)
- 1.6 (NA6C) (66kW/90PS)
-
