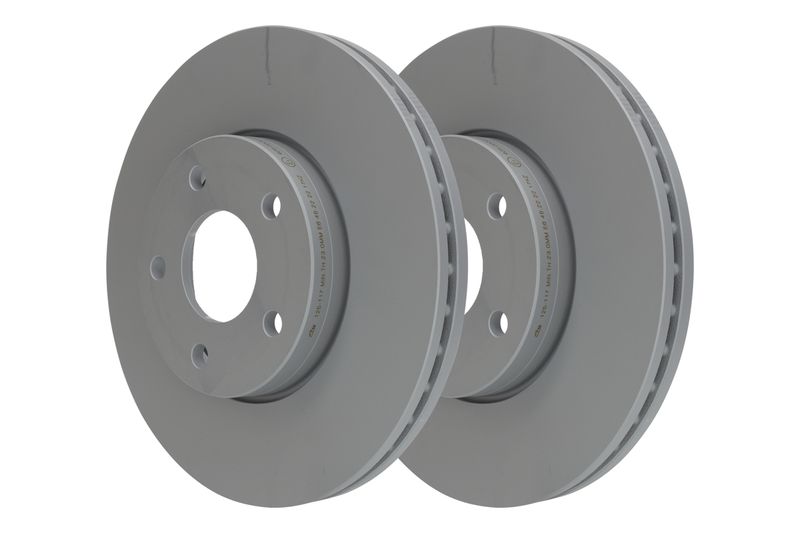

BREMŽU DISKS 24.0125-0117.1 09.9464.11
Compatible with VOLVO C30 (533) , VOLVO C70 II Kabriolets (542) , VOLVO S40 II (544) Show more info49.82 EUR
inc. VAT 21%
In stock 4
No description found

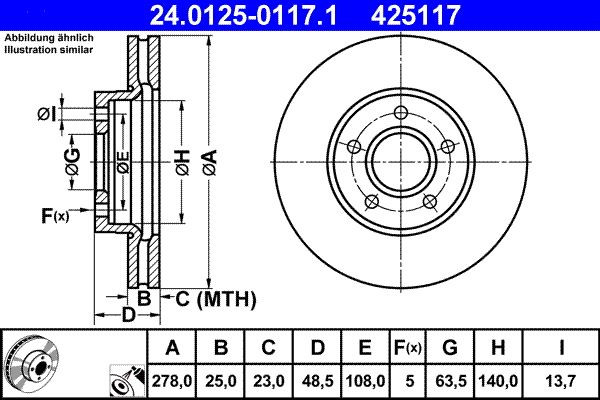

Outer diameter [mm]
278,0
Brake disc thickness [mm]
25,0
Minimum thickness [mm]
23,0
Brake disc type
ventilated
Processing
Multicarbon
Surface
coated
Number of splines
5
Bolt circle-Ø [mm]
108,0
Height [mm]
48,5
Centering diameter [mm]
63,5
Inner diameter [mm]
140,0
Bore diameter [mm]
13,7
Test value
E1 90R-02C0115/0434
-
VOLVO
-
C30 (533)
- D2 (84kW/115PS)
- D3 (110kW/150PS)
- D4 (130kW/177PS)
- 1.6 (74kW/100PS)
- 1.8 (92kW/125PS)
- 2.0 (107kW/145PS)
- 2.4 i (125kW/170PS)
- T5 (162kW/220PS)
- 1.6 D (80kW/109PS)
- 2.0 D (100kW/136PS)
- D5 (132kW/180PS)
- T5 (169kW/230PS)
- 1.8 FlexFuel (92kW/125PS)
- D5 (120kW/163PS)
- 2.0 FlexFuel (107kW/146PS)
- Electric (82kW/112PS)
- Electric (89kW/120PS)
-
C70 II Kabriolets (542)
- D3 (110kW/150PS)
- D4 (130kW/177PS)
- 2.4 (103kW/140PS)
- 2.4 i (125kW/170PS)
- T5 (162kW/220PS)
- D5 (132kW/180PS)
- T5 (169kW/230PS)
- 2.0 D (100kW/136PS)
- 2.4 D (120kW/163PS)
-
S40 II (544)
- D3 (110kW/150PS)
- D4 (130kW/177PS)
- D2 (84kW/115PS)
- 2.0 F (107kW/146PS)
- 2.4 (103kW/140PS)
- 2.4 (125kW/170PS)
- T5 (162kW/220PS)
- 2.0 D (100kW/136PS)
- T5 AWD (162kW/220PS)
- 1.8 (92kW/125PS)
- 1.6 (74kW/101PS)
- 1.6 D (81kW/110PS)
- 2.0 (107kW/146PS)
- D5 (132kW/179PS)
- T5 (169kW/230PS)
- T5 AWD (169kW/230PS)
- 1.8 FlexFuel (92kW/125PS)
- 2.4 CDI (120kW/163PS)
-
V50 (545)
- D4 (130kW/177PS)
- D3 (110kW/150PS)
- 2.4 (103kW/140PS)
- 2.4 (125kW/170PS)
- T5 (162kW/220PS)
- 2.0 D (100kW/136PS)
- T5 AWD (162kW/220PS)
- 1.8 (92kW/125PS)
- 1.6 (74kW/101PS)
- 1.6 D (81kW/110PS)
- 2.0 (107kW/146PS)
- D5 (132kW/179PS)
- T5 (169kW/230PS)
- T5 AWD (169kW/230PS)
- 1.8 FlexFuel (92kW/125PS)
- 2.4 Tdi (120kW/163PS)
- D2 (84kW/114PS)
- 2.0 FlexFuel (107kW/146PS)
- 1.6 D (80kW/109PS)
- 2.0 D4 (96kW/131PS)
-
C30 (533)
-
FORD
-
C-MAX (DM2)
- 1.8 (90kW/122PS)
- 1.6 TDCi (74kW/101PS)
- 1.6 (74kW/100PS)
- 1.8 (92kW/125PS)
- 1.8 Flexifuel (92kW/125PS)
- 1.6 TDCi (66kW/90PS)
- 1.6 TDCi (80kW/109PS)
- 1.6 (85kW/116PS)
-
FOCUS II Turnier (DA_, FFS, DS)
- 1.6 TDCi (74kW/100PS)
- 1.4 (59kW/80PS)
- 1.6 (74kW/100PS)
- 1.6 Ti (85kW/115PS)
- 1.6 TDCi (80kW/109PS)
- 1.6 TDCi (66kW/90PS)
- 1.8 Flexifuel (92kW/125PS)
- 1.8 (92kW/125PS)
- 1.6 LPG (85kW/115PS)
-
FOCUS II (DA_, HCP, DP)
- 1.6 TDCi (74kW/100PS)
- 1.6 (74kW/100PS)
- 1.6 Ti (85kW/115PS)
- 1.4 (59kW/80PS)
- 1.6 TDCi (80kW/109PS)
- 1.6 TDCi (66kW/90PS)
- 1.8 Flexifuel (92kW/125PS)
- 1.8 (92kW/125PS)
- 1.6 LPG (85kW/115PS)
-
FOCUS C-MAX (DM2)
- 2.0 TDCi (98kW/133PS)
- 1.8 (88kW/120PS)
- 1.6 TDCi (80kW/109PS)
- 2.0 TDCi (100kW/136PS)
- 1.6 (74kW/100PS)
- 2.0 (107kW/145PS)
- 1.8 (92kW/125PS)
- 1.6 Ti (85kW/115PS)
- 1.6 TDCi (66kW/90PS)
- 1.8 TDCi (85kW/115PS)
- 1.8 Flexifuel (92kW/125PS)
- 1.8 (90kW/122PS)
-
FOCUS II Sedans (DB_, FCH, DH)
- 1.6 TDCi (74kW/100PS)
- 1.4 (59kW/80PS)
- 1.6 (74kW/100PS)
- 1.6 Ti (85kW/115PS)
- 1.6 TDCi (66kW/90PS)
- 1.6 TDCi (80kW/109PS)
- 1.8 Flexifuel (92kW/125PS)
- 1.8 (92kW/125PS)
-
FOCUS II Kabriolets
- 1.6 (74kW/100PS)
-
FOCUS II Furgons/Universālis
- 1.6 Ti-VCT (85kW/116PS)
- 1.6 TDCi (66kW/90PS)
-
C-MAX (DM2)
