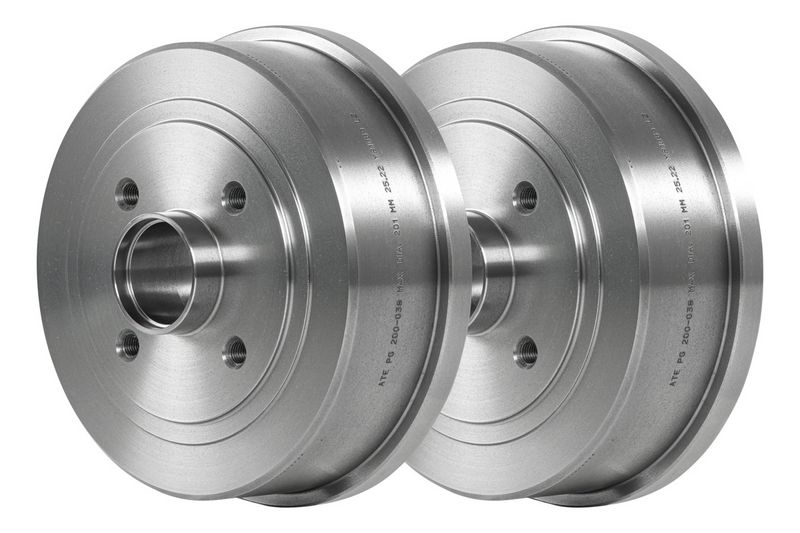

BREMŽU TRUMULIS 24.0220-0038.1
Compatible with OPEL CORSA C (X01) , OPEL CORSA C Furgons/Hečbeks (X01) , OPEL TIGRA TwinTop (X04) Show more info43.07 EUR
inc. VAT 21%
Out of Stock
No description found
Additional article/Additional info 2
without wheel hub bearing
Additional article/Additional info 2
without ABS sensor ring
Brake drum diameter, inner [mm]
200,0
max. brake drum oversize [mm]
201,0
Inner height of brake drum [mm]
54,0
Number of splines
4
Bolt circle-Ø [mm]
100,0
Thread size
M12x1,5
Overall height of the brake drum [mm]
94,2
Brake drum diameter, outer [mm]
228,0
Mounting diameter [mm]
53,0
Inner diameter 2 [mm]
47,2
Test value
E1 90R-02D0955/0094
-
OPEL
-
CORSA C (X01)
- 1.0 (F08, F68) (43kW/58PS)
- 1.2 (F08, F68) (55kW/75PS)
- 1.7 DTI (F08, F68) (55kW/75PS)
- 1.7 DI (F08, F68) (48kW/65PS)
- 1.4 (F08, F68) (66kW/90PS)
- 1.0 (F08, F68) (44kW/60PS)
- 1.3 CDTI (F08, F68) (51kW/70PS)
- 1.2 Twinport (F08, F68) (59kW/80PS)
- 1.4 Twinport (F08, F68) (66kW/90PS)
-
CORSA C Furgons/Hečbeks (X01)
- 1.2 16V (F08, W5L) (55kW/75PS)
- 1.7 DI 16V (F08, W5L) (48kW/65PS)
- 1.7 DTI 16V (F08, W5L) (55kW/75PS)
- 1.3 CDTI 16V (F08, W5L) (51kW/69PS)
- 1.2 (F08, W5L) (59kW/80PS)
- 1.4 (W5L, F08) (66kW/90PS)
-
TIGRA TwinTop (X04)
- 1.4 (R97) (66kW/90PS)
- 1.8 (R97) (92kW/125PS)
- 1.3 CDTI (R97) (51kW/69PS)
-
CORSA C (X01)
