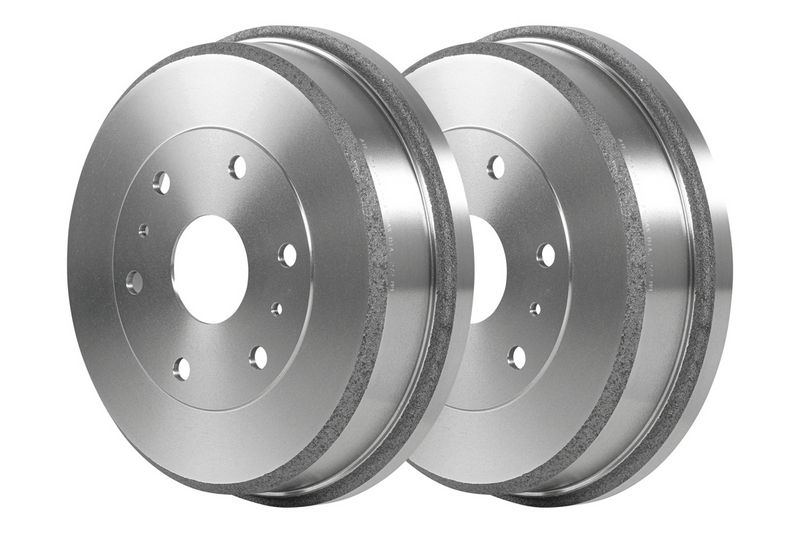

BREMŽU TRUMULIS 24.0227-0004.1
Compatible with TOYOTA HIACE IV Autobuss (_H1_) , TOYOTA HIACE IV Autobuss (__H1_, __H2_) , TOYOTA HIACE IV Furgons (__H1_, __H2_) Show more info64.34 EUR
inc. VAT 21%
Out of Stock
No description found

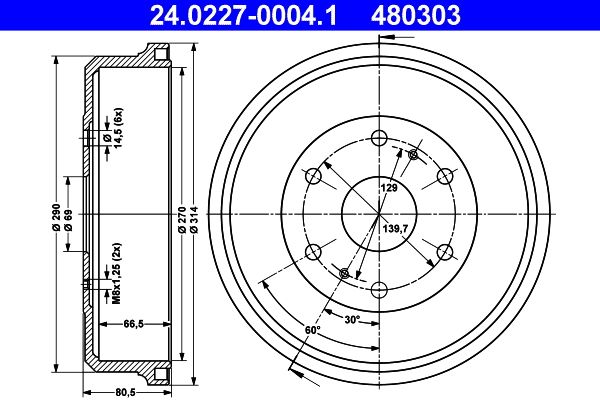

Brake drum diameter, inner [mm]
270,0
max. brake drum oversize [mm]
272,0
Inner height of brake drum [mm]
66,5
Mounting diameter [mm]
69,0
Number of splines
6
Bolt circle-Ø [mm]
139,7
Bore diameter [mm]
14,5
Overall height of the brake drum [mm]
80,5
Brake drum diameter, outer [mm]
314,0
-
TOYOTA
-
HIACE IV Autobuss (_H1_)
- 2.0 (RZH102, RZH112) (74kW/101PS)
-
HIACE IV Autobuss (__H1_, __H2_)
- 2.4 D (LXH12, LXH22) (58kW/79PS)
- 2.4 TD (LXH12, LXH22) (66kW/90PS)
- 2.4 (RCH12, RCH22) (85kW/115PS)
- 2.7 (RCH13, RCH23) (105kW/143PS)
- 2.4 D (LXH12) (55kW/75PS)
- 2.7 (RCH13, RCH23) (106kW/144PS)
- 2.5 D-4D (KLH12, KLH22) (70kW/95PS)
- 2.5 D-4D (KLH12, KLH22) (86kW/117PS)
-
HIACE IV Furgons (__H1_, __H2_)
- 2.4 (RCH12, RCH22) (85kW/116PS)
- 2.4 D (LXH12, LXH22) (58kW/79PS)
- 2.4 TD (LXH12, LXH22) (66kW/90PS)
- 2.7 (RCH13, RCH23) (105kW/143PS)
- 2.5 D-4D (KLH12, KLH22) (86kW/117PS)
- 2.5 D-4D (KLH12, KLH22) (70kW/95PS)
-
HIACE / COMMUTER V Autobuss (TRH2__, KDH2__, LH2__, GDH2__)
- 2.5 D-4D (KDH202) (75kW/102PS)
-
HIACE V Furgons (TRH2__, KDH2__, LH2__, GDH2__)
- 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) (75kW/102PS)
- 2.5 D-4D (70kW/95PS)
- 2.5 D-4D (KDH200, KDH202, KDH212, KDH222) (86kW/117PS)
-
HIACE IV Autobuss (_H1_)
