A/C Kompresors 89576 Toyota RAV4 88310-42210
Compatible with TOYOTA PICNIC (_XM1_) , TOYOTA AVENSIS Liftback (_T22_) , TOYOTA AVENSIS (_T22_) Show more info244.14 EUR
21% VAT inc.
Out of Stock
No description found

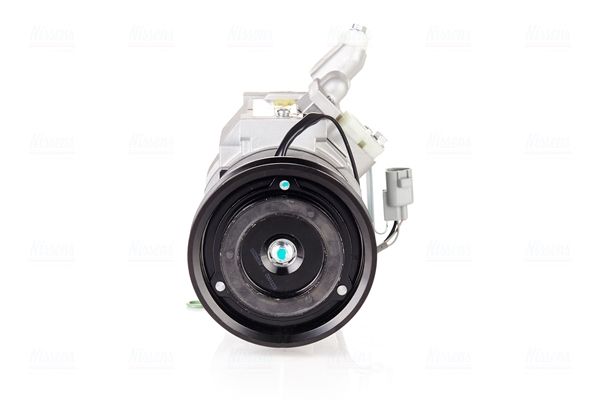

Drive pulley-Ø [mm]
120
Displacement-Compressor [ccm]
167
Compressor ID
10S15L
Compressor oil
PAG 46
Plug connector housing shape
Angle
Additional article/Additional info 2
with PAG compressor oil
Intake-Ø [mm]
18,3
Exhaust-Ø [mm]
15,5
Number of grooves
5

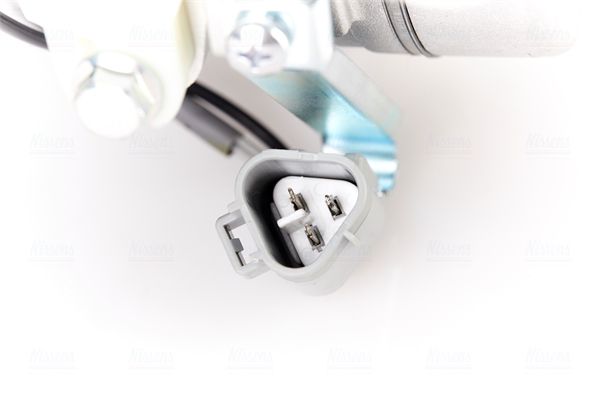

Number of pin contacts
3
Oil fill quantity [ml]
+150
Type of connector
Connector plug
Coolant
R 134a
Voltage [V]
12
Additional article/Additional info 2
with electromagnetic clutch
-
TOYOTA
-
PICNIC (_XM1_)
- 2.2 D (CMX10_, CXM10G) (66kW/90PS)
-
AVENSIS Liftback (_T22_)
- 2.0 D-4D (CDT220_, CDT220R) (81kW/110PS)
- 2.0 D (CDT220_) (85kW/115PS)
-
AVENSIS (_T22_)
- 2.0 D-4D (CDT220_, CDT220R) (81kW/110PS)
- 2.0 D-4D (CDT220) (85kW/116PS)
-
AVENSIS Universālis (_T22_)
- 2.0 D-4D (CDT220_, CDT220R) (81kW/110PS)
-
AVENSIS VERSO (_M2_)
- 2.0 D (CLM20_, CLM20R) (85kW/116PS)
-
RAV 4 II (_A2_)
- 2.0 D 4WD (CLA20_, CLA21_, CLA20R, CLA21R) (85kW/116PS)
-
PICNIC (_XM1_)
