BRAKE DISC X1 FORD S-MAX FR
Compatible with LAND ROVER FREELANDER 2 (L359) , FORD MONDEO IV Turnier (BA7) , FORD MONDEO IV (BA7) Show more info55.68 EUR
inc. VAT 21%
Can be ordered
No description found
Installation side
Front axle
Brake disc type
ventilated

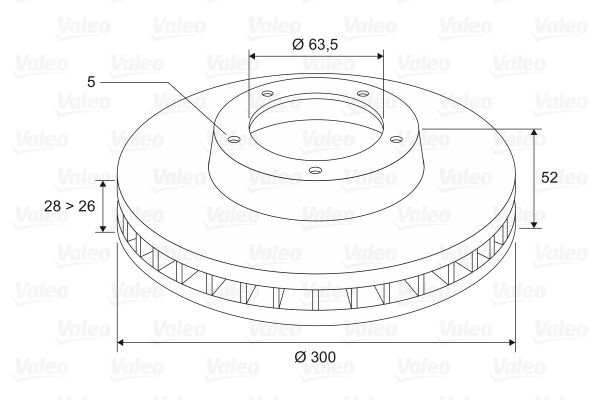

Outer diameter [mm]
300
Brake disc thickness [mm]
28
Centering diameter [mm]
63,5
Height [mm]
52
Minimum thickness [mm]
26
Number of wheel rim holes
5
Number of mounting holes
1
Additional article/Additional info 2
without screws
Additional article/Additional info 2
without ABS sensor ring
Additional article/Additional info 2
without integrated wheel hub bearing
Test value
ECE-R90
Mass [kg]
8,89
-
LAND ROVER
-
FREELANDER 2 (L359)
- 2.2 eD4 (110kW/150PS)
- 2.2 TD4 4x4 (110kW/150PS)
- 2.2 SD4 4x4 (140kW/190PS)
- 2.0 Si4 4x4 (177kW/241PS)
- 2.2 TD4 4x4 (118kW/160PS)
- 2.2 TD4 4x4 (112kW/152PS)
-
RANGE ROVER EVOQUE (L538)
- 2.2 D (110kW/150PS)
- 2.2 D 4x4 (110kW/150PS)
- 2.2 D 4x4 (140kW/190PS)
- 2.0 4x4 (177kW/241PS)
- 2.0 4x4 (176kW/240PS)
- 2.0 4x4 (213kW/290PS)
- 2.0 D (110kW/150PS)
- 2.0 D 4x4 (110kW/150PS)
- 2.0 D 4x4 (132kW/180PS)
- 2.0 D 4x4 (177kW/241PS)
- 2.0 4x4 (177kW/241PS)
-
RANGE ROVER EVOQUE Kabriolets (L538)
- 2.0 D 4x4 (110kW/150PS)
- 2.0 D 4x4 (132kW/180PS)
- 2.0 4x4 (177kW/241PS)
- 2.0 D 4x4 (177kW/241PS)
- 2.0 4x4 (177kW/241PS)
-
RANGE ROVER EVOQUE VAN (L538)
- Si4 4x4 (177kW/241PS)
- TD4 (110kW/150PS)
- TD4 4x4 (110kW/150PS)
- SD4 4x4 (140kW/190PS)
-
FREELANDER 2 (L359)
-
FORD
-
MONDEO IV Turnier (BA7)
- 2.0 TDCi (100kW/136PS)
- 2.0 LPG (107kW/145PS)
- 1.6 Ti (88kW/120PS)
- 1.6 EcoBoost (118kW/160PS)
- 2.0 EcoBoost (176kW/240PS)
- 1.6 TDCi (85kW/115PS)
- 2.2 TDCi (147kW/200PS)
- 1.6 Ti (81kW/110PS)
- 1.6 Ti (92kW/125PS)
- 2.0 (107kW/145PS)
- 2.5 (162kW/220PS)
- 1.8 TDCi (74kW/100PS)
- 2.0 TDCi (96kW/130PS)
- 2.0 TDCi (103kW/140PS)
- 2.2 TDCi (129kW/175PS)
- 2.3 (118kW/160PS)
- 2.0 TDCi (85kW/115PS)
- 2.0 Flexifuel (107kW/145PS)
- 1.8 TDCi (92kW/125PS)
- 2.0 TDCi (120kW/163PS)
- 2.0 SCTi (149kW/203PS)
-
MONDEO IV (BA7)
- 2.0 LPG (107kW/145PS)
- 2.0 TDCi (100kW/136PS)
- 1.6 Ti (88kW/120PS)
- 1.6 EcoBoost (118kW/160PS)
- 2.0 EcoBoost (176kW/240PS)
- 1.6 TDCi (85kW/115PS)
- 2.2 TDCi (147kW/200PS)
- 1.6 Ti (81kW/110PS)
- 1.6 Ti (92kW/125PS)
- 2.0 (107kW/145PS)
- 2.5 (162kW/220PS)
- 1.8 TDCi (74kW/100PS)
- 2.0 TDCi (96kW/130PS)
- 2.0 TDCi (103kW/140PS)
- 2.3 (118kW/160PS)
- 2.0 TDCi (85kW/115PS)
- 2.2 TDCi (129kW/175PS)
- 2.0 Flexifuel (107kW/145PS)
- 1.8 TDCi (92kW/125PS)
- 2.0 SCTi (149kW/203PS)
- 2.0 TDCi (120kW/163PS)
-
MONDEO IV Sedans (BA7)
- 2.0 LPG (107kW/145PS)
- 1.6 Ti (92kW/125PS)
- 2.0 (107kW/145PS)
- 2.5 (162kW/220PS)
- 2.0 TDCi (96kW/130PS)
- 2.0 TDCi (103kW/140PS)
- 2.2 TDCi (129kW/175PS)
- 2.3 (118kW/160PS)
- 2.0 TDCi (85kW/115PS)
- 1.8 TDCi (92kW/125PS)
- 2.0 Flexifuel (107kW/145PS)
- 1.6 Ti (81kW/110PS)
- 1.8 TDCi (74kW/100PS)
- 2.0 TDCi (120kW/163PS)
- 1.6 TDCi (85kW/115PS)
- 1.6 EcoBoost (118kW/160PS)
- 2.2 TDCi (147kW/200PS)
- 2.0 TDCi (100kW/136PS)
- 2.0 SCTI (149kW/203PS)
- 1.6 Ti (88kW/120PS)
- 2.0 EcoBoost (176kW/240PS)
-
GALAXY II (WA6)
- 2.0 TDCi (100kW/136PS)
- 1.6 TDCi (85kW/115PS)
- 1.6 EcoBoost (118kW/160PS)
- 2.2 TDCi (147kW/200PS)
- 2.0 (107kW/145PS)
- 1.8 TDCi (74kW/100PS)
- 2.0 TDCi (96kW/130PS)
- 2.0 TDCi (103kW/140PS)
- 1.8 TDCi (92kW/125PS)
- 2.3 (118kW/160PS)
- 2.0 TDCi (85kW/115PS)
- 2.2 TDCi (129kW/175PS)
- 2.0 Flexifuel (107kW/145PS)
- 2.0 EcoBoost (149kW/203PS)
- 2.0 TDCi (120kW/163PS)
-
S-MAX (WA6)
- 2.0 TDCi (100kW/136PS)
- 1.6 TDCi (85kW/115PS)
- 1.6 EcoBoost (118kW/160PS)
- 2.2 TDCi (147kW/200PS)
- 2.0 EcoBoost (176kW/240PS)
- 2.0 (107kW/145PS)
- 2.0 TDCi (96kW/130PS)
- 2.0 TDCi (103kW/140PS)
- 1.8 TDCi (92kW/125PS)
- 2.2 TDCi (129kW/175PS)
- 2.3 (118kW/160PS)
- 2.0 TDCi (85kW/115PS)
- 2.0 Flexifuel (107kW/145PS)
- 2.0 TDCi (120kW/163PS)
- 2.0 EcoBoost (149kW/203PS)
- 2.0 EcoBoost (146kW/199PS)
-
GALAXY MK II VAN (WA6)
- TDCi (96kW/131PS)
- TDCi (103kW/140PS)
- TDCi (147kW/200PS)
-
S-MAX VAN (WA6)
- 1.6 (118kW/160PS)
- 2.0 (107kW/145PS)
- 2.0 EcoBoost (149kW/203PS)
- 2.0 EcoBoost (176kW/239PS)
- 2.0 TDCi (85kW/116PS)
- 2.0 TDCi (103kW/140PS)
- 2.0 TDCi (120kW/163PS)
-
MONDEO IV Turnier (BA7)
-
VOLVO
-
V60 I (155)
- 2.0 T (149kW/203PS)
- D3 / D4 (120kW/163PS)
- D5 (151kW/205PS)
- D5 AWD (151kW/205PS)
- T3 (110kW/150PS)
- T4 (132kW/180PS)
- T5 (177kW/241PS)
- T6 AWD (224kW/305PS)
- 1.6 DRIVe (84kW/114PS)
- D5 (158kW/215PS)
- D5 AWD (158kW/215PS)
- T4F (132kW/180PS)
- D6 Hybrid AWD (206kW/280PS)
- D3 (100kW/136PS)
- D4 AWD (120kW/163PS)
- D4 (133kW/181PS)
- D4 AWD (133kW/181PS)
- T5 (180kW/245PS)
- T6 (225kW/306PS)
- T5 (157kW/214PS)
- T6 AWD (242kW/329PS)
- D5 (169kW/230PS)
- D5 AWD (169kW/230PS)
- D2 (88kW/120PS)
- D3 (110kW/150PS)
- D4 (140kW/190PS)
- D4 AWD (140kW/190PS)
- D5 (165kW/224PS)
- D6 Hybrid AWD (206kW/280PS)
- T3 (112kW/152PS)
- T3 (112kW/152PS)
- T4 (140kW/190PS)
- D5 Hybrid AWD (169kW/230PS)
- T5 AWD (187kW/254PS)
- T6 AWD (225kW/306PS)
- T2 (90kW/122PS)
- T5 (162kW/220PS)
- 2.0 T (132kW/180PS)
-
V70 III (135)
- T4 (132kW/180PS)
- T5 (177kW/241PS)
- D3 / D4 (120kW/163PS)
- 1.6 DRIVe / D2 (84kW/114PS)
- D5 (158kW/215PS)
- D5 AWD (158kW/215PS)
- 3.2 (179kW/243PS)
- T4F (132kW/180PS)
- 3.2 AWD (179kW/243PS)
- T6 AWD (224kW/305PS)
- 2.5 T (147kW/200PS)
- 3.2 AWD (175kW/238PS)
- T6 AWD (210kW/286PS)
- 2.4 D (120kW/163PS)
- D5 (136kW/185PS)
- 2.0 (107kW/145PS)
- 3.2 (175kW/238PS)
- 2.0 D (100kW/136PS)
- D5 AWD (136kW/185PS)
- 2.0 BiFuel (157kW/214PS)
- 2.5 T FlexiFuel (147kW/200PS)
- 2.0 FlexiFuel (107kW/146PS)
- 2.4 D (129kW/175PS)
- 2.5 T FlexiFuel (170kW/231PS)
- D5 (151kW/205PS)
- D5 AWD (151kW/205PS)
- 1.6 D (80kW/109PS)
- 2.5 T (170kW/231PS)
- 2.0 T (149kW/203PS)
- D4 AWD (120kW/163PS)
- D3 (100kW/136PS)
- D4 (133kW/181PS)
- D4 AWD (133kW/181PS)
- T5 (180kW/245PS)
- D2 (88kW/120PS)
- D3 (110kW/150PS)
- T4 (140kW/190PS)
- 2.0 GDI (157kW/214PS)
-
S80 II (124)
- T4 (132kW/180PS)
- T5 (177kW/241PS)
- T6 AWD (224kW/305PS)
- D3 / D4 (120kW/163PS)
- 3.2 AWD (179kW/243PS)
- 3.2 (179kW/243PS)
- 1.6 DRIVe (84kW/114PS)
- D5 AWD (158kW/215PS)
- D5 (158kW/215PS)
- T4F (132kW/180PS)
- D5 (136kW/185PS)
- 4.4 V8 AWD (232kW/316PS)
- 2.5 T (147kW/200PS)
- 3.2 (175kW/238PS)
- 2.4 D (120kW/163PS)
- 3.2 AWD (175kW/238PS)
- T6 AWD (210kW/286PS)
- D5 AWD (136kW/185PS)
- 2.5 T FlexFuel (147kW/200PS)
- 2.0 FlexFuel (107kW/146PS)
- 2.0 TDi (100kW/136PS)
- D3 (100kW/136PS)
- 2.5 T FlexFuel (170kW/231PS)
- 2.4 D (129kW/175PS)
- D5 (151kW/205PS)
- D5 AWD (151kW/205PS)
- 1.6 D DRIVe (80kW/109PS)
- 2.5 T (170kW/231PS)
- 2.0 T (149kW/203PS)
- 2.0 (107kW/146PS)
- D4 (133kW/181PS)
- T5 (180kW/245PS)
- 2.0 Drive- E (180kW/245PS)
- 2.5 T (183kW/249PS)
- 2.5 T (187kW/254PS)
- T5 (162kW/220PS)
-
XC70 II (136)
- 3.2 AWD (179kW/243PS)
- T6 AWD (224kW/304PS)
- D5 AWD (158kW/215PS)
- D3 (120kW/163PS)
- 3.2 AWD (175kW/238PS)
- D5 AWD (136kW/185PS)
- 2.4 D / D4 AWD (120kW/163PS)
- T6 AWD (210kW/286PS)
- D5 AWD (151kW/205PS)
- 2.4 D (129kW/175PS)
- D4 AWD (133kW/181PS)
- D4 (133kW/181PS)
- T5 (180kW/245PS)
- D5 AWD (162kW/220PS)
- T5 AWD (187kW/254PS)
- D5 AWD (169kW/230PS)
-
S60 II (134)
- DRIVe / D2 (84kW/114PS)
- D5 (158kW/215PS)
- D5 AWD (158kW/215PS)
- T4F (132kW/180PS)
- T3 (110kW/150PS)
- T4 (132kW/180PS)
- 2.0 T (149kW/203PS)
- T5 (177kW/240PS)
- T6 AWD (224kW/304PS)
- D3 (120kW/163PS)
- D5 (151kW/205PS)
- D5 AWD (151kW/205PS)
- T6 AWD (242kW/329PS)
- D3 (100kW/136PS)
- D4 (120kW/163PS)
- T6 (225kW/306PS)
- T5 (180kW/245PS)
- D4 (133kW/181PS)
- 2.0 T (132kW/180PS)
- 3.0 T AWD (258kW/351PS)
- D5 (169kW/230PS)
- D5 AWD (169kW/230PS)
- D2 (88kW/120PS)
- D3 (110kW/150PS)
- D4 (140kW/190PS)
- D4 AWD (140kW/190PS)
- D5 (165kW/224PS)
- T3 (112kW/152PS)
- T3 (112kW/152PS)
- T4 (140kW/190PS)
- T6 AWD (225kW/306PS)
- D4 Drive-E Polestar (147kW/200PS)
- D5 Drive-E Polestar (171kW/232PS)
- 2.5 T (183kW/249PS)
-
XC70 II VAN (136)
- 2.0 D4 (120kW/163PS)
- 2.4 D4 AWD (120kW/163PS)
- 2.4 D5 AWD (158kW/215PS)
-
S60 II Cross Country (134)
- D3 (110kW/150PS)
- D4 (140kW/190PS)
- D4 AWD (140kW/190PS)
- T5 AWD (187kW/254PS)
- D4 Drive-E Polestar (147kW/200PS)
-
V60 I (155)
