BRAKE DISC X2 HYUN H1 FR
Compatible with HYUNDAI H-1 / STAREX Autobuss (A1) , HYUNDAI H-1 Furgons (A1) , HYUNDAI H-1 Platforma/Šasija Show more info94.53 EUR
inc. VAT 21%
Can be ordered
No description found
Installation side
Front axle
Brake disc type
ventilated

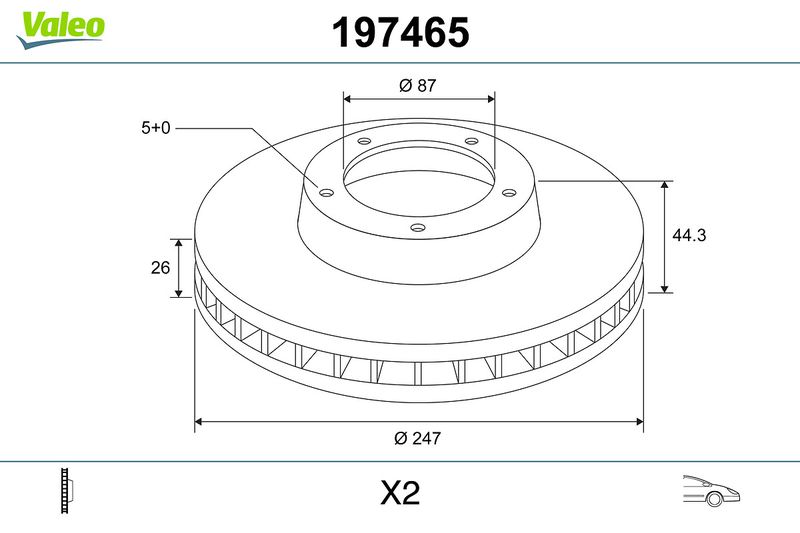

Outer diameter [mm]
247
Brake disc thickness [mm]
26
Centering diameter [mm]
87
Height [mm]
44,3
Minimum thickness [mm]
24,4
Number of wheel rim holes
5
Additional article/Additional info 2
without ABS sensor ring
Additional article/Additional info 2
without integrated wheel hub bearing
Test value
ECE-R90
Mass [kg]
13,35
-
HYUNDAI
-
H-1 / STAREX Autobuss (A1)
- 2.4 (82kW/112PS)
- 2.5 TD (59kW/80PS)
- 2.5 TD 4WD (59kW/80PS)
- 2.4 4WD (99kW/135PS)
- 2.5 D (57kW/78PS)
- 2.5 TCi (73kW/99PS)
- 2.5 TCi (74kW/101PS)
- 2.5 CRDi (103kW/140PS)
- 2.4 (101kW/137PS)
- 2.5 TD 4WD (73kW/99PS)
- 2.5 TD 4WD (74kW/101PS)
- 2.5 CRDi (81kW/110PS)
-
H-1 Furgons (A1)
- 2.5 TD (74kW/101PS)
- 2.5 CRDi (103kW/140PS)
-
H-1 Platforma/Šasija
- 2.5 D (73kW/99PS)
-
H-1 Cargo (TQ)
- 2.5 CRDi (125kW/170PS)
- 2.5 CRDi (81kW/110PS)
- 2.5 CRDi (85kW/116PS)
-
H-1 Travel (TQ)
- 2.5 CRDi (125kW/170PS)
- 2.5 CRDi (81kW/110PS)
-
H100 Platforma/Šasija (HR)
- 2.5 TD (74kW/101PS)
-
H-1 / STAREX Autobuss (A1)
HYUNDAI
